Measat 3/3a at 91.5°E

Measat 3 at 91.5°E : Technical data

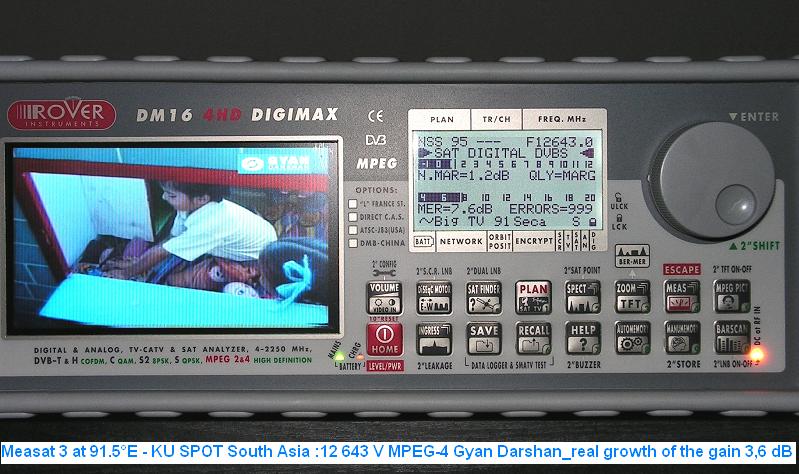

 Measat 3 at 91.5 E _ KU SPOT South Asia _ first snapshot ok

  • Measat 3
  • Orbital location : 91.5°E
  • Geographic Coverage : South Asia , Malaysia and Indonesia
  • Number of Transponders : 24
  • TP bandwidth : 36 MHz
  • Channel Polarization : linear
  • Beacon Signals : C band 4,198 MHz / 4,199 MHz
  • ULPC beacon signal : KU 12 201 MHz

Measat 3 at 91.5°E-KU South Asia beam:MPEG-4 Big TV_V+H spectral scanning & ULPC beacon frequency



                                             Measat 3 at 91.5°E - KU SPOT South Asia : V+H spectral analysis

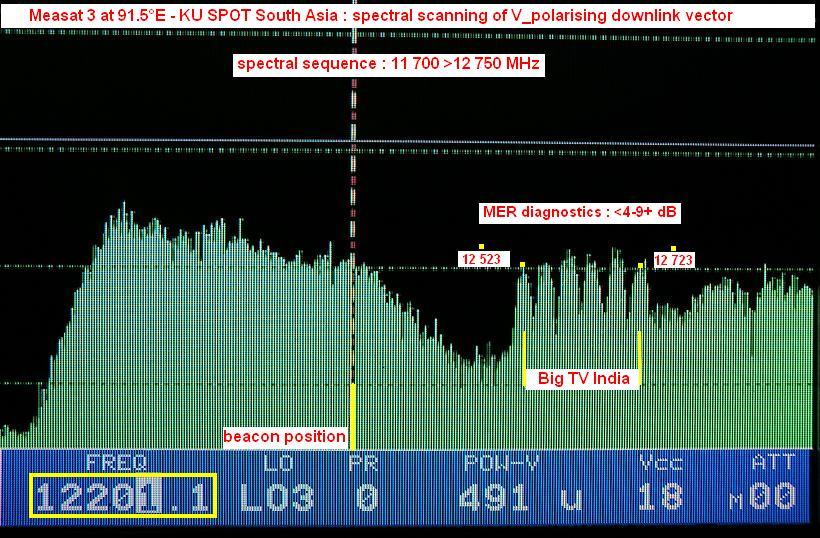

             V_vertical spectral sequence                  KU_South Asian footprint                 H_horizontal spectral sequence
   Measat 3 at 91.5 E _ KU SPOT South Asia _ V pol spectral scanningMeasat 3 at 91.5 E _ KU SPOT South AsiaMeasat 3 at 91.5 E _ KU SPOT South Asia _ H pol spectral scanning

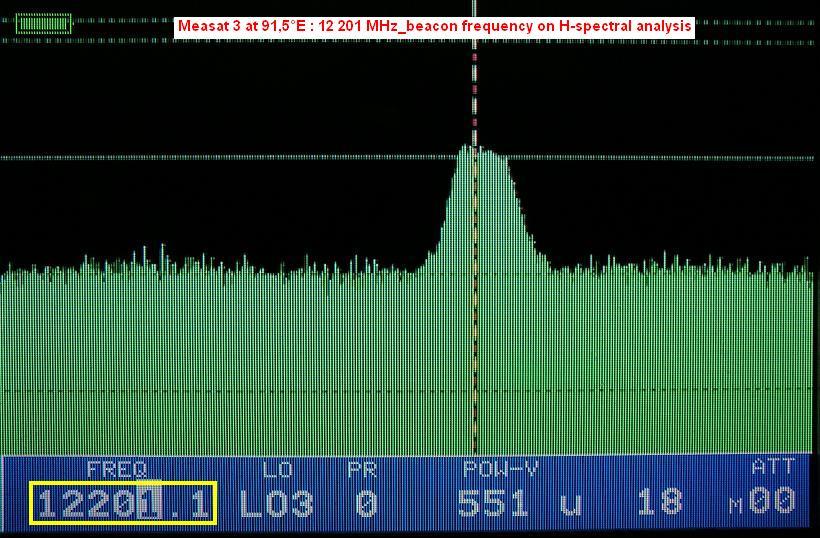

   ULPC beacon frequency :12 201 V         reception point : Lučenec_Slovakia       ULPC beacon frequency :12 201 H
Measat 3 at 91.5 E _ KU SPOT South Asia _ beacon frequency 12 201 MHz on V spectrumMeasat 3 at 91.5 E _ reception point on the mapMeasat 3 at 91.5 E _ KU SPOT South Asia _ beacon frequency 12 201 MHz on H spectrum


                                                                    C-ID level by FEC 3/4 : MER=4,0 dB

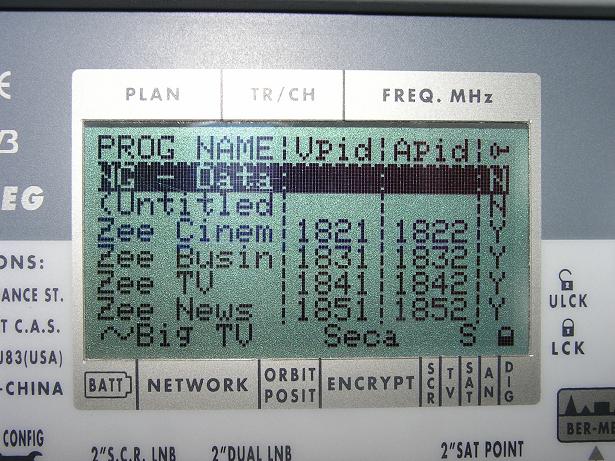

                            Measat 3 at 91.5°E - KU SPOT South Asia : 12 523 V MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 523 V Packet Big TV India _ VA pids dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 523 V Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 523 V Packet Big TV India _ NIT data

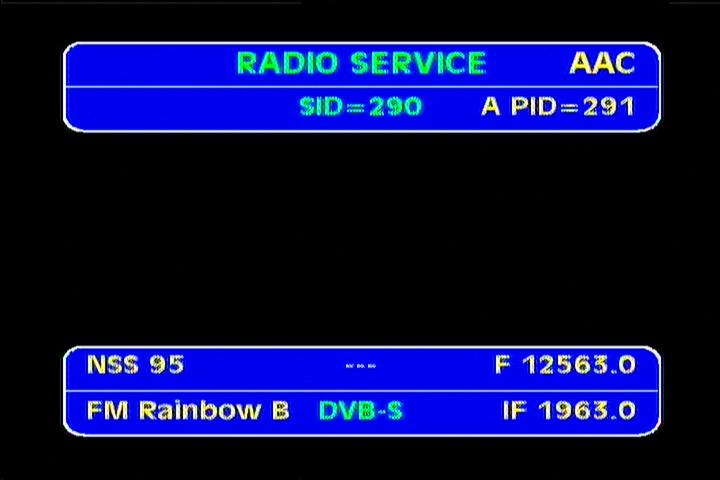

                             Measat 3 at 91.5°E - KU SPOT South Asia : 12 563 V MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 563 V Packet Big TV India _ A pids dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 563 V Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 563 V Packet Big TV India _ NIT data

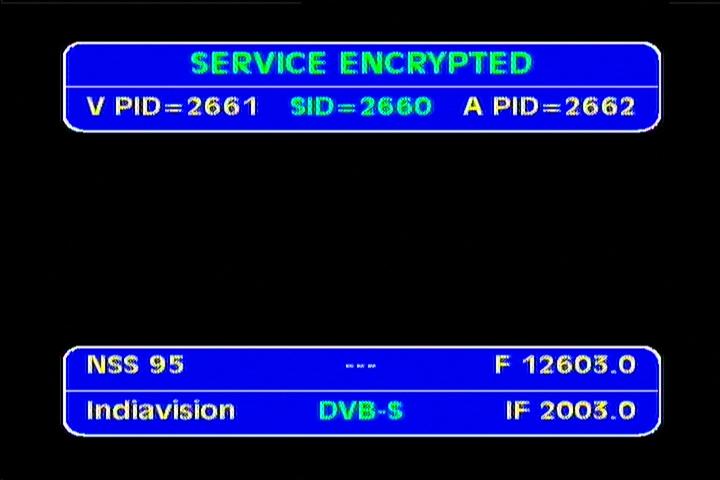

                            Measat 3 at 91.5°E - KU SPOT South Asia : 12 603 V MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 603 V Packet Big TV India _ VA pids dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 603 V Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 603 V Packet Big TV India _ NIT data

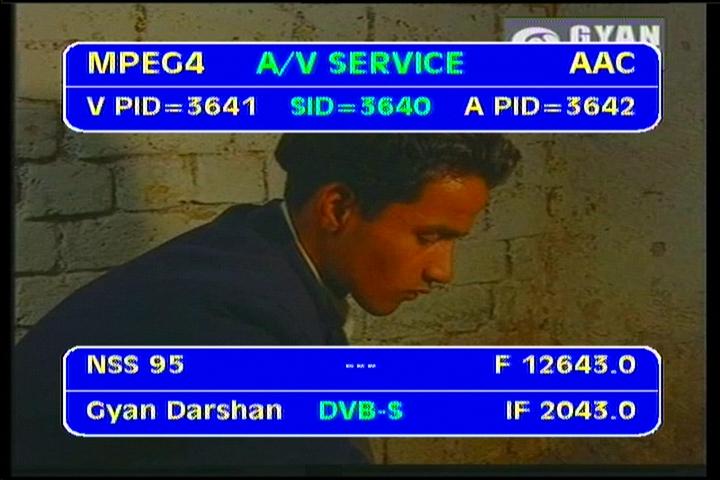

                             Measat 3 at 91.5°E - KU SPOT South Asia : 12 643 V MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 643 V Packet Big TV India _ VA pids dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 643 V Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 643 V Packet Big TV India _ NIT data

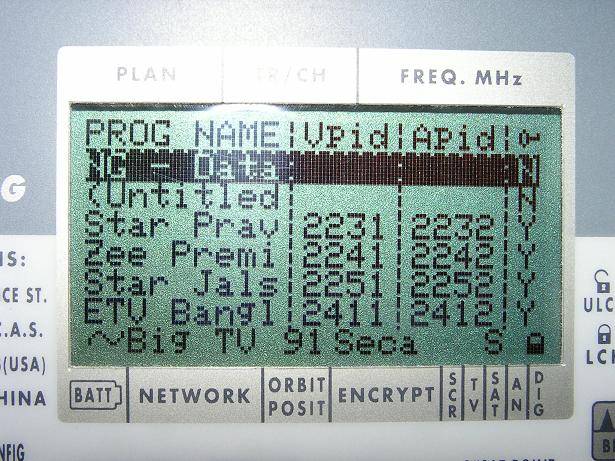

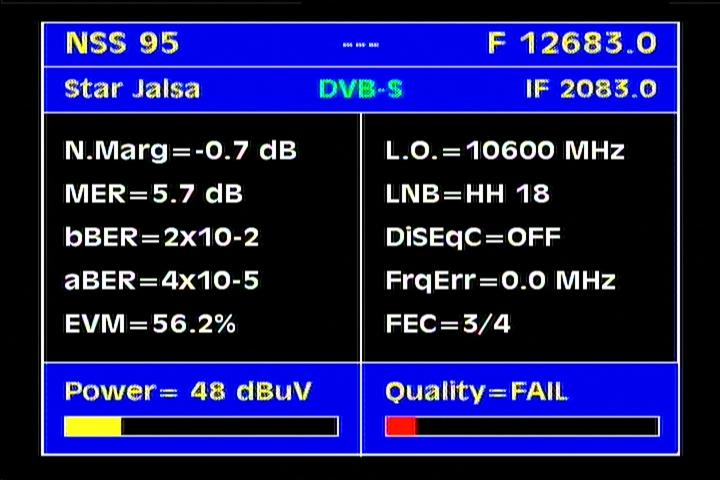

                             Measat 3 at 91.5°E - KU SPOT South Asia : 12 683 V MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 683 V Packet Big TV India _ VA pids dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 683 V Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 683 V Packet Big TV India _ NIT data

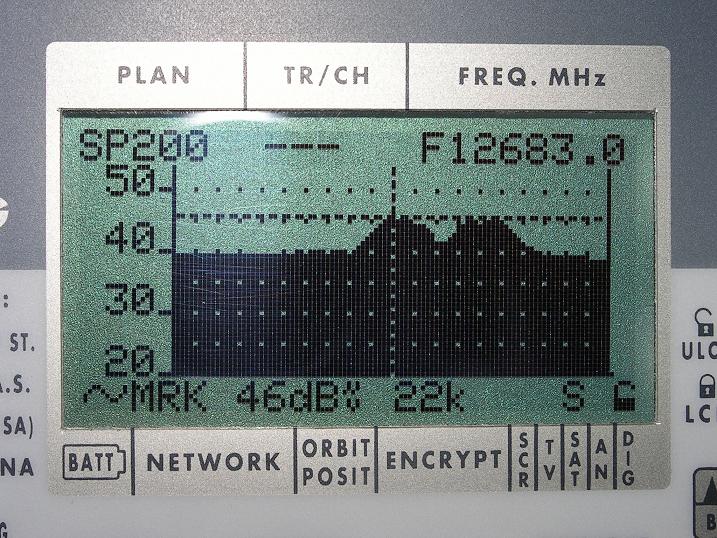

                            Measat 3 at 91.5°E - KU SPOT South Asia : 12 683 H MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 683 H Packet Big TV India _ SID dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 683 H Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 683 H Packet Big TV India _ H spectral analysis

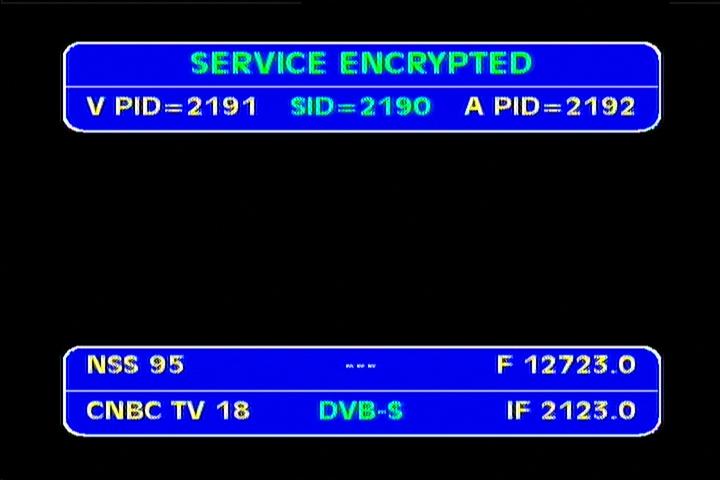

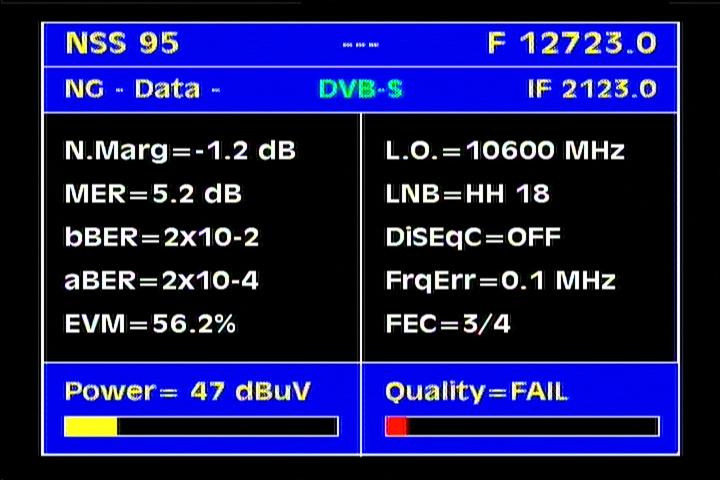

                             Measat 3 at 91.5°E - KU SPOT South Asia : 12 723 H MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 723 H Packet Big TV India _ VA pids dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 723 H Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 723 H Packet Big TV India _ NIT data

                             Measat 3 at 91.5°E - KU SPOT South Asia : 12 723 V MPEG-4 Packet Big TV India
                         VA pids                                                     Q data                                                    NIT data
Measat 3 at 91.5 E _ KU SPOT South Asia _ 12 723 V Packet Big TV India _ VA pids dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 723 V Packet Big TV India _ Q dataMeasat 3 at 91.5 E _ KU SPOT South Asia _ 12 723 V Packet Big TV India _ NIT data


Measat 3 at 91.5°E : TV List

Measat 3 at 91.5 E _ PF Prodelin 3.7 m


-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Beam--- ---Antenna--- ---DVB/Encryption---

12 523 -V- tp 7KV

Big TV India

 27 500 3/4 South Asia 300-500+ cm         DVB/MPEG-4
  Zee Cinema         Mediaguard
  Zee Business         Mediaguard
  Zee TV         Mediaguard
  Zee News         Mediaguard
  Zee Cafe         Mediaguard
  Test Channel 2         Mediaguard
  Zee Studio         Mediaguard
  Zee Trendz         Mediaguard
  Star Utsav         Mediaguard
  Samay         Mediaguard
  Zoom TV         Mediaguard
  Aaj Tak         Mediaguard
  Headlines Today         Mediaguard
  Tez         Mediaguard
  MTV India         Mediaguard
  VH1 India         Mediaguard
  Nickelodeon         Mediaguard
  UTV World Movie         Mediaguard
  UTV Bindaas Movie         Mediaguard
  Gemini Music         Mediaguard
  Surya TV         Mediaguard
  Sun TV         Mediaguard
  Sun News         Mediaguard
  Udaya 2         Mediaguard
  News Hindi         Mediaguard

12 563 -V- tp 8KV

 Big TV India 27 500 3/4 South Asia 300-500+ cm            DVB/MPEG-4
  Radio Kashmir         AAC/FTA radio service
  AIR Bangla         AAC/FTA radio service
  AIR Hindi         AAC/FTA radio service
  AIR Marathi         AAC/FTA radio service
  FM Gold Mumbai         AAC/FTA radio service
  AIR Gujarati         AAC/FTA radio service
  FM Rainbow Delhi         AAC/FTA radio service
  FM Rainbow Chenai         AAC/FTA radio service
  FM Rainbow Bangla         AAC/FTA radio service
  FM Gold Delhi         AAC/FTA radio service
  Preview         Mediaguard
  Hindi Blockbust         Mediaguard
  Hindi Action         Mediaguard
  Hindi Family         Mediaguard
  Hindi Drama         Mediaguard
  Hindi Romance         Mediaguard
  Hindi Suspense         Mediaguard
  Hindi Comedy         Mediaguard
  Choice Pay 1         Mediaguard
  Choice Pay 2         Mediaguard
  Choice Pay 3         Mediaguard
  ISP Video         Mediaguard
  Choice Pay 5         Mediaguard
  Choice Pay 6         Mediaguard
  Regional Blockbuster         Mediaguard
  Telegu         Mediaguard
  Kannada         Mediaguard
  Tamil         Mediaguard
  Bengali         Mediaguard
  Gujarati         Mediaguard
  Marathi         Mediaguard
  Bhojpuri         Mediaguard

12 603 -V- tp 9KV

 Big TV India 27 500 3/4 South Asia 300-500+ cm        DVB/MPEG-4
  KBS World         Mediaguard
  Indiavision         Mediaguard
  Disney Channel         Mediaguard
  CNN         Mediaguard
  Star Vijay         Mediaguard
  Star Plus         Mediaguard
  Star News         Mediaguard
  Star Movies         Mediaguard
  Star Gold         Mediaguard
  Star World         Mediaguard
  Channel V         Mediaguard
  Filmy         Mediaguard
  Ten Sports         Mediaguard
  NDTV Profit         Mediaguard
  NDTV 24x7         Mediaguard
  NDTV India         Mediaguard
  NDTV Good Times         Mediaguard
  Jetix         Mediaguard
  Kasturi TV         Mediaguard
  UTV Movies         Mediaguard
  WB         Mediaguard
  PTC Punjabi         Mediaguard
  E Entertainment         Mediaguard
  TV 99         Mediaguard
  Test Channel         Mediaguard

12 643 -V- tp 10KV

 Big TV India 27 500 3/4 South Asia 300-500+ cm MPEG-4/Mediaguard
  VOI         Mediaguard
  Fox History & Entertainment         Mediaguard
  National Geographic         Mediaguard
  Star Sports         Mediaguard
  Star One         Mediaguard
  Animax         Mediaguard
  AXN         Mediaguard
  Star Ananda         Mediaguard
  UTV Bindaas         Mediaguard
  Zee Telegu         Mediaguard
  Zee Talkies         Mediaguard
  Zee Kannada         Mediaguard
  Gemini TV         Mediaguard
  Firangi         Mediaguard
  DD News         Mediaguard
  DD Punjabi         Mediaguard
  DD Gujarati         Mediaguard
  DD Oriya         Mediaguard
  DD Kashir         Mediaguard
  DD Sahyadri         Mediaguard
  India News         Mediaguard
  DD National         Mediaguard
  DD Lok Sabha         Mediaguard
  DD Rajya Sabha         Mediaguard
  9X         Mediaguard
  OTV         Mediaguard
  DD Gyan Darshan          MPEG-4/FTA

12 683 -V- tp 11KV

 Big TV India 27 500 3/4 South Asia 300-500+ cm MPEG-4/Mediaguard
  Zee Premier         Mediaguard
  Star Jalsha         Mediaguard
  ETV Bangla         Mediaguard
  ETV Marathi         Mediaguard
  ETV Kannada         Mediaguard
  ETV Gujarati         Mediaguard
  ETV Oriya         Mediaguard
  ETV Telegu         Mediaguard
  ETV 2         Mediaguard
  Maa TV         Mediaguard
  IBN 7         Mediaguard
  Pogo         Mediaguard
  BBC World News         Mediaguard
  Chutti         Mediaguard
  HBO         Mediaguard
  Discovery         Mediaguard
  Discovery Travel         Mediaguard
  Sony         Mediaguard
  Sab TV         Mediaguard
  Cartoon Network         Mediaguard
  Animal Planet         Mediaguard
  Set Max         Mediaguard
  Pix         Mediaguard
  Sahara One         Mediaguard
  Movies         Mediaguard
  News X         Mediaguard

12 683 -H- tp 23KH

 Big TV India 27 500 3/4 South Asia 300-500+ cm       DVB/MPEG-4
  Times Now         Mediaguard
  Hungama TV         Mediaguard
  ETV Uttar Pradesh         Mediaguard
  ETV Madhya Pradesh         Mediaguard
  ETV Rajasthan         Mediaguard
  ETV Bihar         Mediaguard
  ETV Urdu         Mediaguard
  NTV News         Mediaguard
  Asianet Suvarna         Mediaguard
  TV 9 Telegu         Mediaguard
  Aakaash Bangla         Mediaguard
  Manorama News         Mediaguard
  Kairali Channel         Mediaguard
  TV 9 Kannada         Mediaguard
  NE TV         Mediaguard
  Isai Aruvi         Mediaguard
  Jaya TV         Mediaguard
  Asianet plus         Mediaguard
  Asianet         Mediaguard
  Amrita TV         Mediaguard
  Kalaignar TV         Mediaguard
  Asianet News         Mediaguard
  Neo Cricket         Mediaguard
  Neo Sports         Mediaguard
  Zee Punjabi         Mediaguard
  Zee Gujarati         Mediaguard
  Zee Marathi         Mediaguard
  Zee Bangla         Mediaguard

12 723 -V- tp 12KH

 Big TV India 27 500 3/4 South Asia 300-500+ cm       DVB/MPEG-4
  iNews         Mediaguard
  iCare         Mediaguard
  iAstro         Mediaguard
  iCooking         Mediaguard
  iStock         Mediaguard
   CNN IBN          Mediaguard
   UTVi          Mediaguard
   Shalom TV          Mediaguard
   Star Cricket          Mediaguard
   Music India          Mediaguard
  Teja TV           Mediaguard
   KTV          Mediaguard
  ISP Video          Mediaguard
  Help Channel           Mediaguard
  Choice Pay TV           Mediaguard
  Telegu 1           Mediaguard
  Telegu 2           Mediaguard
  Kannada         Mediaguard
  Tamil         Mediaguard
  DD Bengali         Mediaguard
  DD Oriya         Mediaguard
  DD Gurajati         Mediaguard
  DD Marathi         Mediaguard
  DD Bhojpuri         Mediaguard

12 723 -H- tp 24KH

 Big TV India 27 500 3/4 South Asia 300-500+ cm MPEG-4/Mediaguard
  DD Bharti         Mediaguard
  DD Sports          Mediaguard
  DD Podhigai         Mediaguard
  NDTV Imagine          Mediaguard
  India TV          Mediaguard
  NDTV         Mediaguard
  Aastha TV          Mediaguard
  Good TV          Mediaguard
  CNBC Awaaz          Mediaguard
  CNBC TV 18          Mediaguard
  Raj TV          Mediaguard
  Fashion TV India         Mediaguard
  ETC Punjabi          Mediaguard
  Mh1 Shraddha         Mediaguard
  Mh1          Mediaguard
  Sanskar TV         Mediaguard
  IBN Lokmat         Mediaguard
  9XM         Mediaguard
  Zee Ghanta         Mediaguard
  Star Majha         Mediaguard
  Mi Marathi         Mediaguard
  Kiran TV         Mediaguard
  Udaya TV         Mediaguard
  Udaya Movies         Mediaguard
  Udaya Verhegalu         Mediaguard
  Gemini News         Mediaguard
  Sun Music         Mediaguard


Measat 3 at 91.5°E : percent Q and stream infos


Percent Q 01  EPG menu 02  Percent Q 02


Measat 3 at 91.5°E : Video presentations _ MPEG-4 Big Tv India & radio services


      Go to video section :            Go to video section :


Measat 3/3a at 91.5°E : Update is from

                         dxsatcs logo

     CZECH & SLOVAK DX SATELLITE CLUB / http://dxsatcs.com/
     SATELLITE ENGINEERING C & KU band
     Roman Dávid - author http://dxsatcs.com/
     town : Lučenec , Slovak Republic,East Europe
     mail : roman.david@dxsatcs.com

Measat 3 at 91.5°E - KU SPOT South Asia : DX News

A day with Measat 3 beacon frequency on dxsatcs.com portal - Measat 3 at 91.5°E - KU SPOT South Asia : All about Measat 3 beacon frequency with ULPC beacon spectral scanning & spectral identification on f=12 201 MHz, beacon POW-V measurement + C/N ...

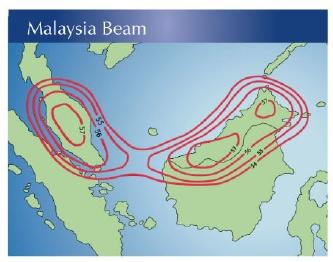

Measat 3/3a at 91.5°E footprint : South Asia/Malaysia/Indonesia beam

Measat 3 at 91.5E KU South Asian footprint
                Measat 3 at 91.5E KU South Indonesia beamMeasat 3 at 91.5E KU South Malaysia beam

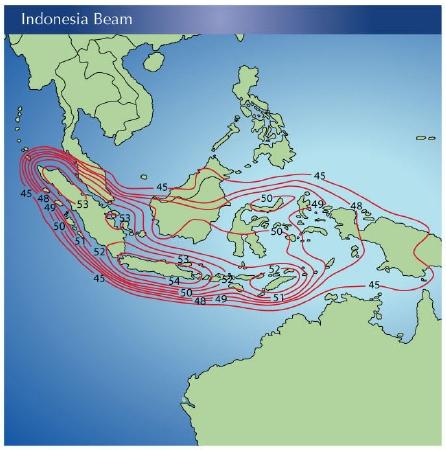

                                 Measat 3a at 91.5°E                                 Measat 3a at 91.5°E
                                   Beam : Indonesia                                       Beam : Malaysia
                   Measat 3a at 91.5e KU Indonesian beamMeasat 3a at 91.5e KU Malaysian beam

Measat 3 at 91.5°E : TV Snapshots

MPEG-4 DD Gyan Darshan 01MPEG-4 DD Gyan Darshan 02MPEG-4 DD Gyan Darshan 04
MPEG-4 DD Gyan Darshan 05MPEG-4 DD Gyan Darshan 06MPEG-4 DD Gyan Darshan 07
