Insat 3A/4B at 93.5°E
Insat 3A/4B at 93.5°E : Technical data

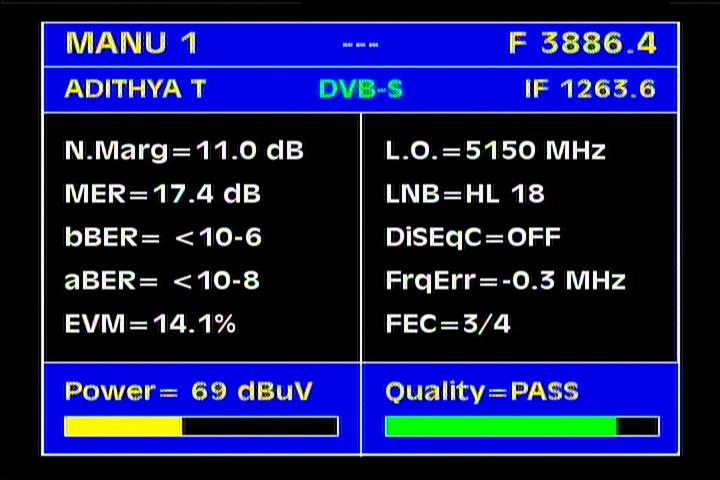

Insat 4B : 3 885 H Packet SUN DTO India / qualitative peak MER=17.4 dB
Insat 4B - Position : 93.5°E - TP : 12 C/12 KU - Lifetime : from 1.3.2007 - 12 years

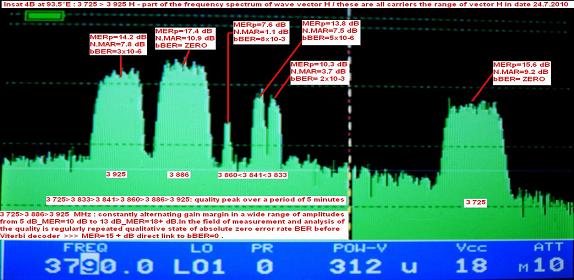

Insat 4B at 93.5°E - 4B wide footprint : spectral analysis & measurement results 01
.
Insat 4B at 93.5°E - 4B wide footprint : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 24.7.2010
elevation angle : only 2.0°

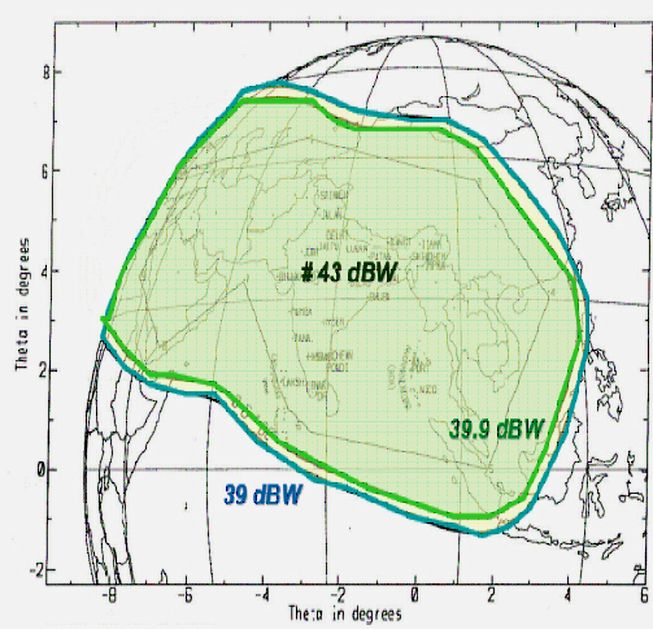

Insat 4B footprint Insat 4B : installed antenna Insat 4B : reception point

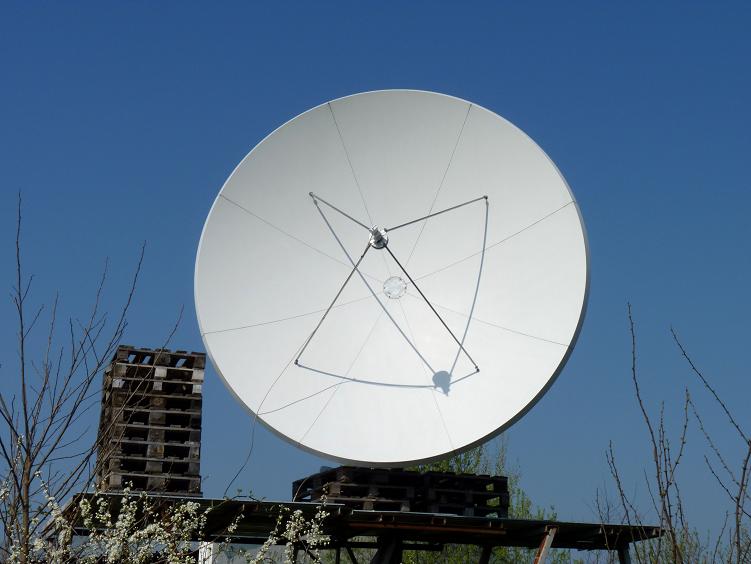

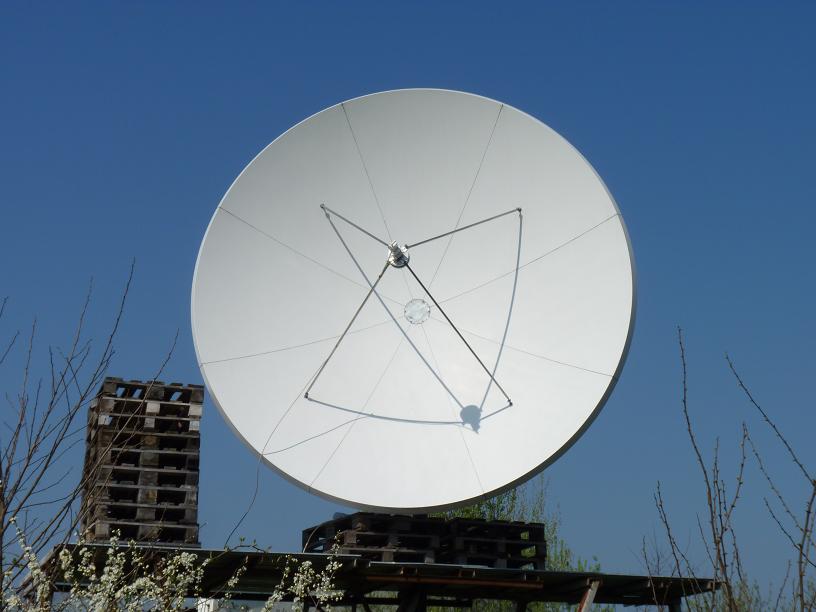

coverage area PF Prodelin 3.7 m town Lučenec / Slovakia
Asia , Middle East , Europe 48.33° _ 19.72°
Insat 4B spectral analysis - wave vector H : analyzed carriers_ 3 725 , 3 833 , 3 841 , 3 860 , 3 886 , 3 925

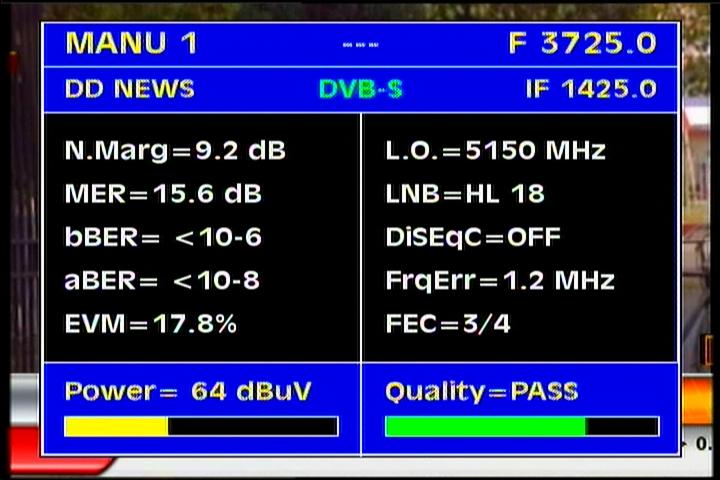

3 725 H : Packet DD Doordarshan India / 3 833 H : DD Bihar India

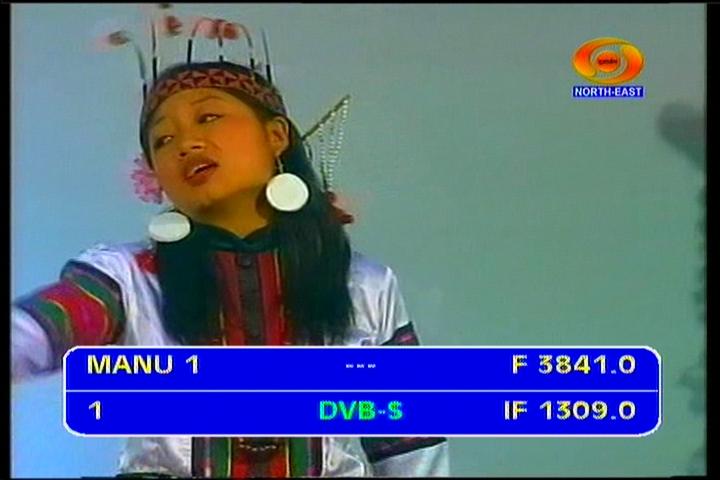

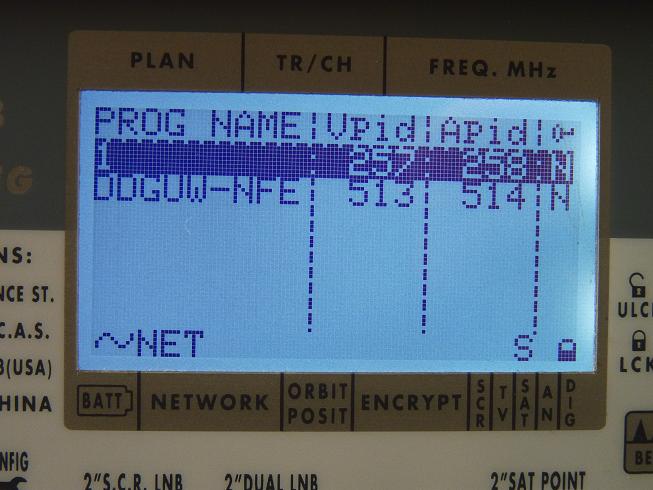

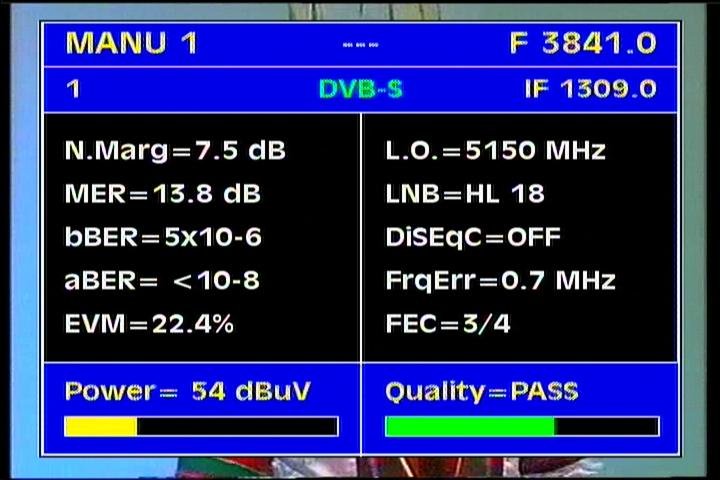

3 841 H : DD North-East / 3 860 H : feeds

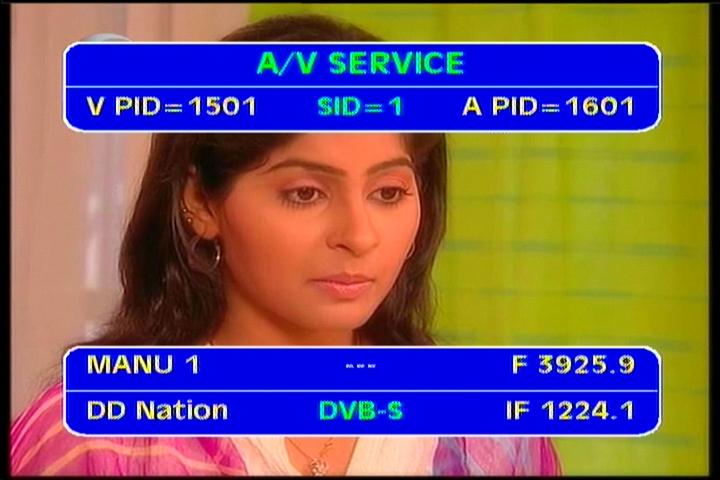

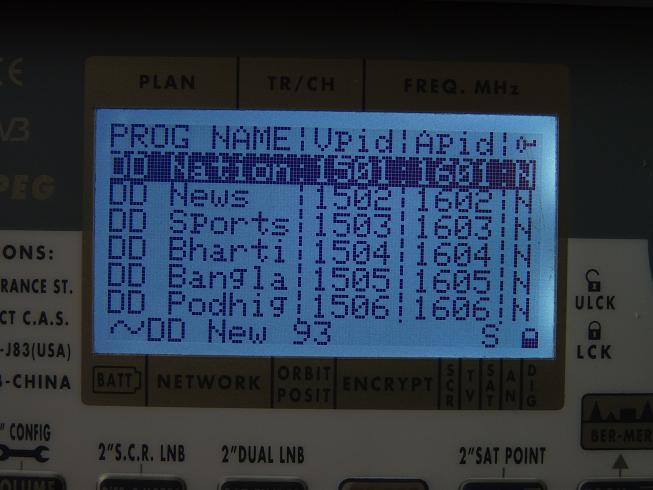

3 886 H : Packet SUN DTO India / 3 925 H : Packet DD Doordarshan India
click to enlarge
- time of measurement : 24.7.2010_7.00-13.00 -
- defining the status of reception -
3 725>3 886>3 925 MHz : constantly alternating gain margin in a wide range of amplitudes from 5 dB_MER=10 dB
to 13 dB_MER=18+ dB.In the field of measurement and analysis of the quality is regularly repeated qualitative state
of absolute zero error rate BER before Viterbi decoder >>> MER=15 + dB direct link to bBER=0 .

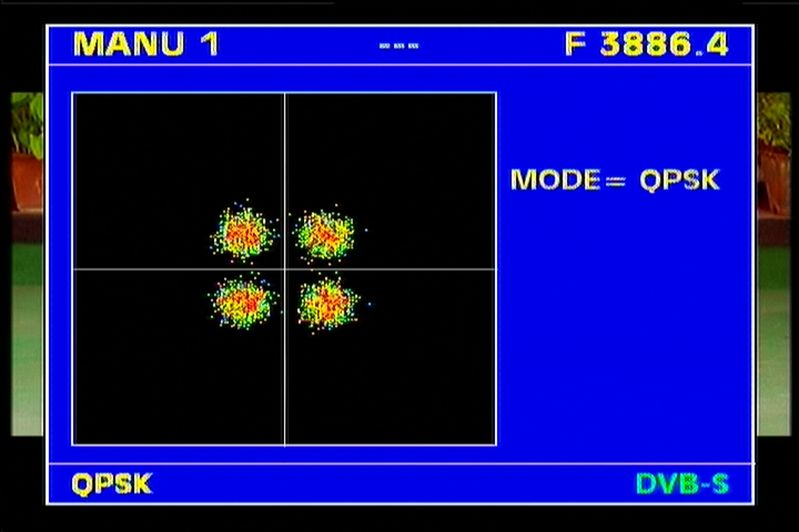

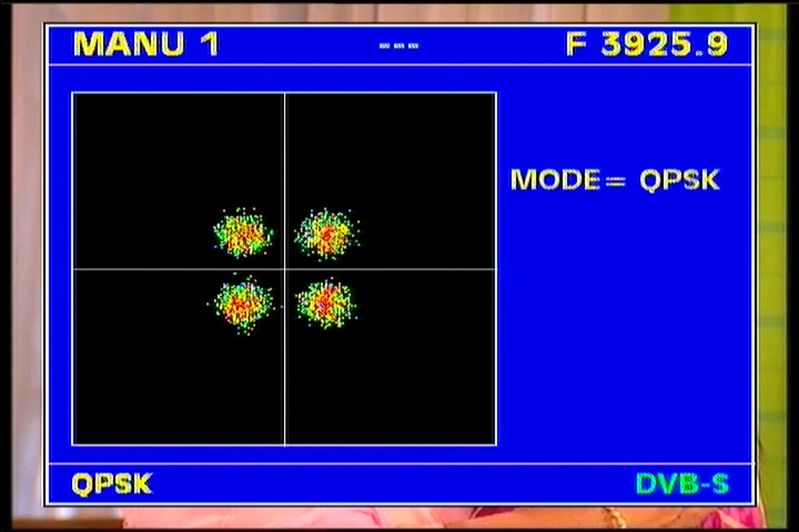

--- Insat 4B at 93.5°E : PEAK MEMORY function & QPSK constellation diagrams ---

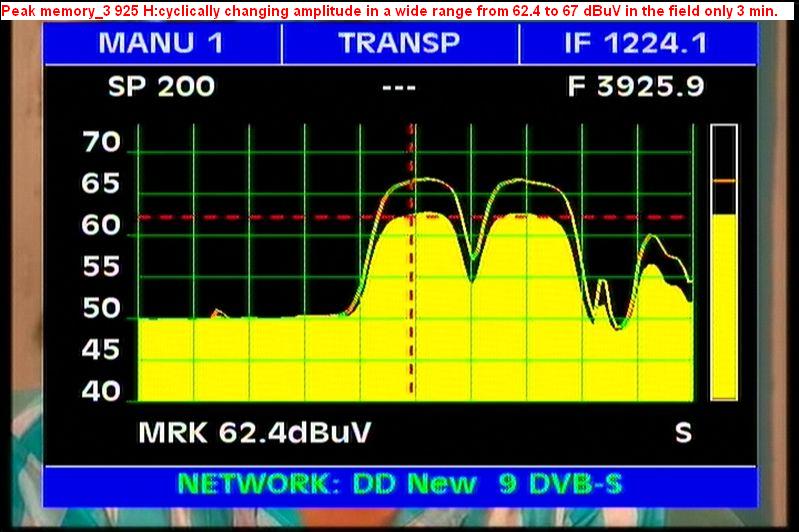

PEAK MEMORY : This feature analyzes the spectrum defined by an immediate change in amplitude of the
signal levels over a period of three to five minutes >>> EIRP flow continuously oscillates in short periods
3 725 H : Packet DD Doordarshan 3 886 H : Packet SUN DTO 3 925 H : Packet DD Doordarshan
peak memory 01 peak memory 02 peak memory 03
+ + +
.
Insat 3A at 93.5°E - 3A wide footprint : spectral analysis & measurement results 02
Insat 3A at 93.5°E - 3A wide footprint : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 24.7.2010
elevation angle : only 2.0°

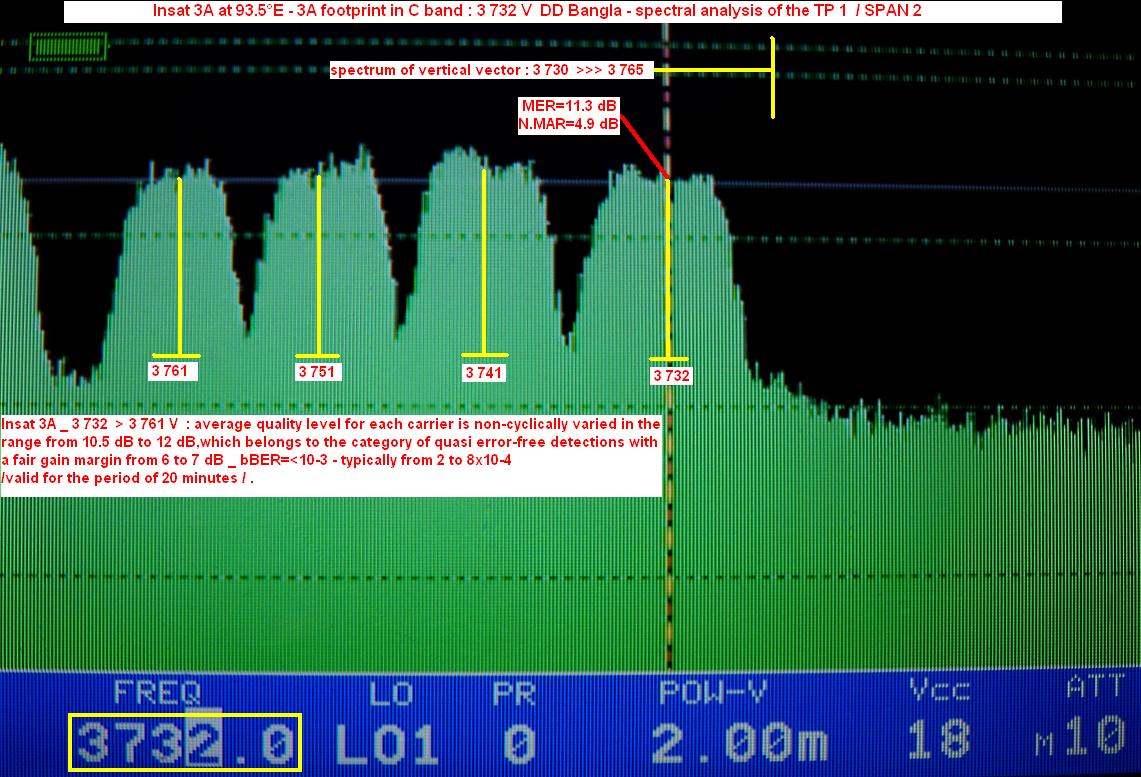

Insat 3A spectral analysis Insat 3A wide footprint
part of the spectrum V : 3 732>3 761 Asia , Middle East , Europe
- time of measurement : 24.7.2010_7.00-13.00 -
- defining the status of reception -
-- 3 732 V : DD Bangla _ network DD Doordarshan --
- average quality level for each carrier is non-cyclically varied in the range from 10.5 dB to 12+ dB,which belongs to
the category of quasi error-free detections with a fair gain margin from 6 to 7 dB _ bBER=<10-3 - typically from
2 to 8x10-4 /valid for the period of 20 minutes /
--- Insat 3A/4B at 93.5°E : results of measurements of quality of reception ---

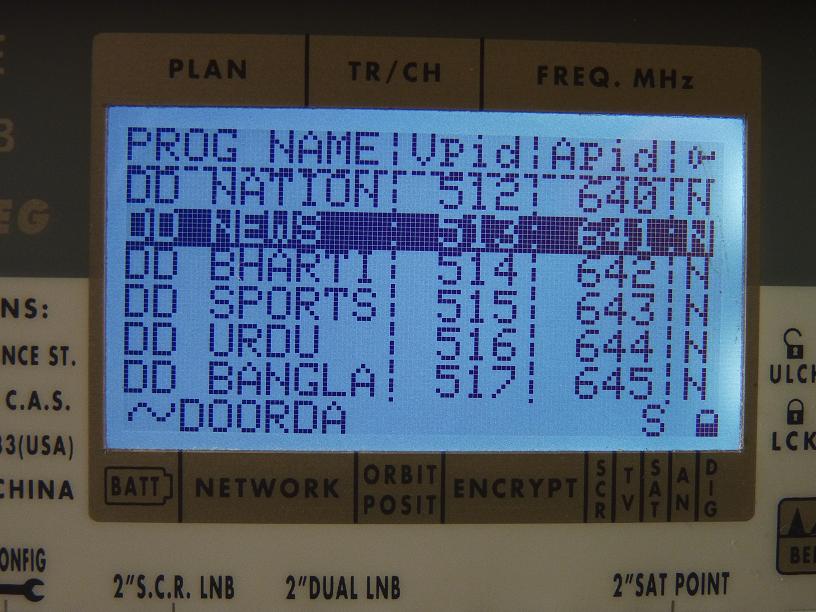

Insat 3A/4B at 93.5°E - C band footprint : 3 725 H Packet DD Doordarshan
IF data Q data NIT data

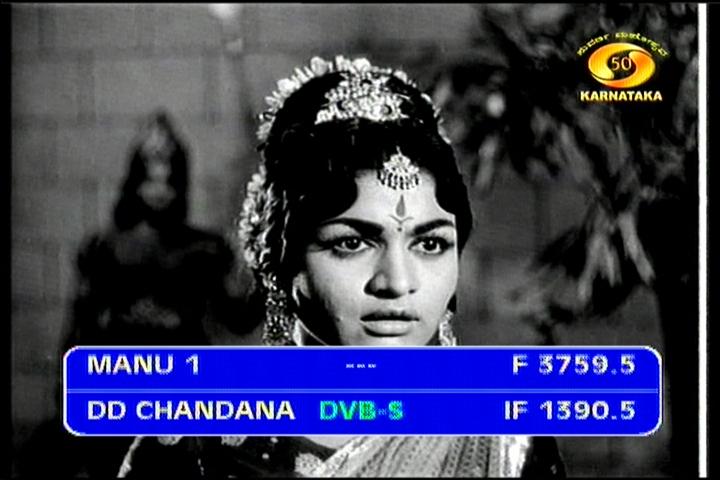

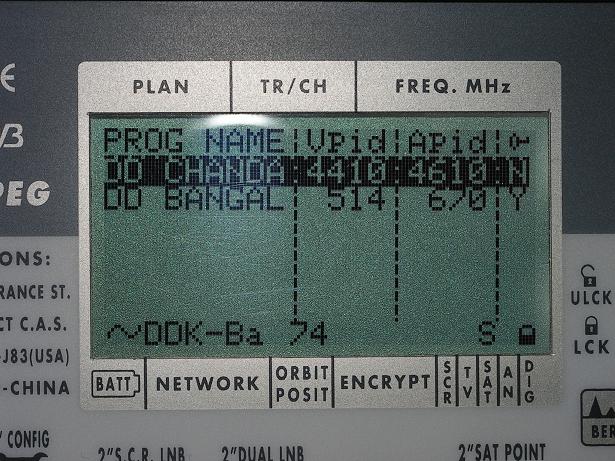

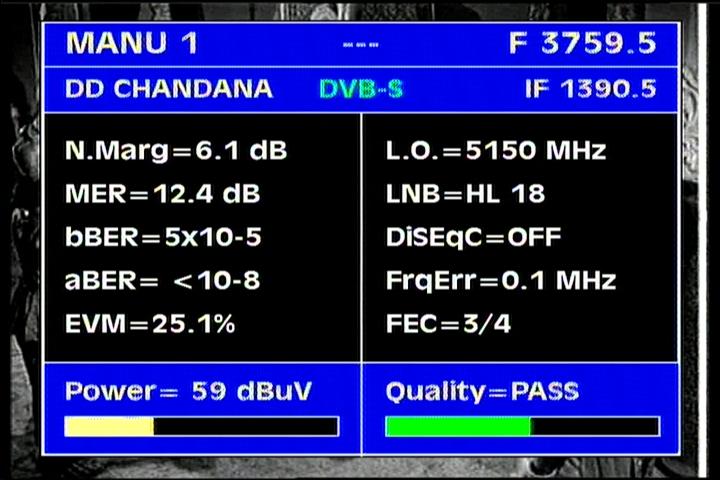

Insat 3A/4B at 93.5°E - C band footprint : 3 759 V DD Chandana
IF data Q data NIT data

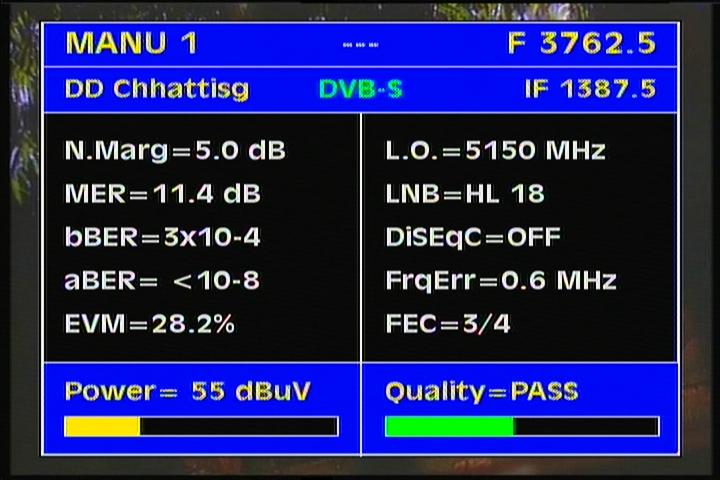

Insat 3A/4B at 93.5°E - C band footprint : 3 762 H DD Chhattisg
IF data Q data NIT data

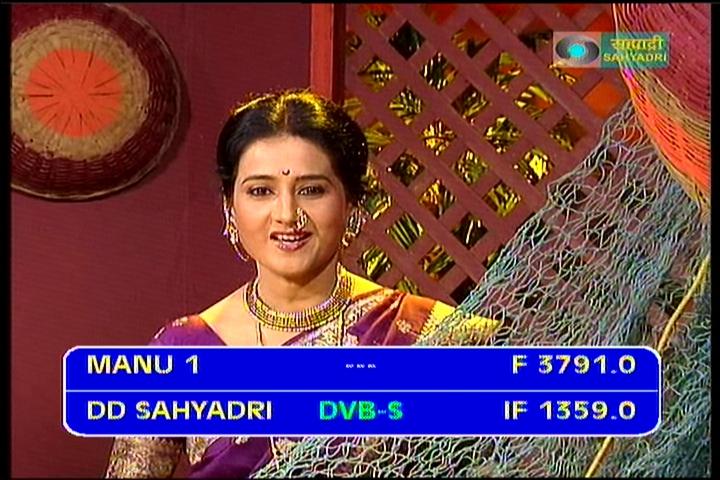

Insat 3A/4B at 93.5°E - C band footprint : 3 791 V DD Sahyadri
IF data Q data NIT data
Insat 3A/4B at 93.5°E - C band footprint : 3 820 V DD Sapthagiri
IF data Q data NIT data

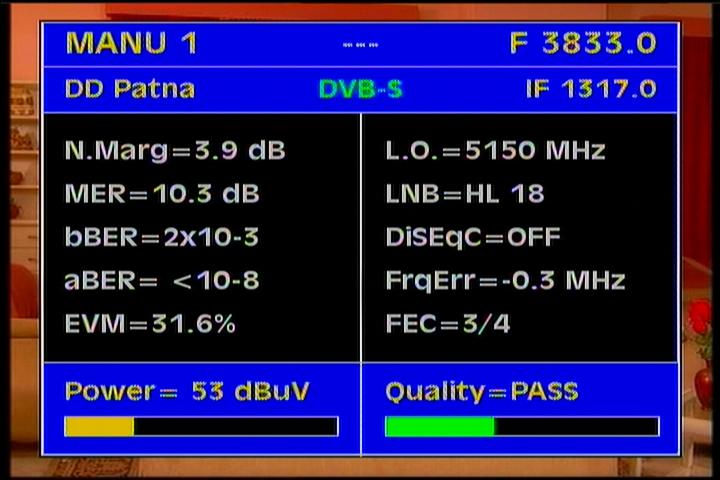

Insat 3A/4B at 93.5°E - C band footprint : 3 833 H DD Bihar
IF data Q data NIT data
Insat 3A/4B at 93.5°E - C band footprint : 3 842 H DD Guwahati
IF data Q data NIT data

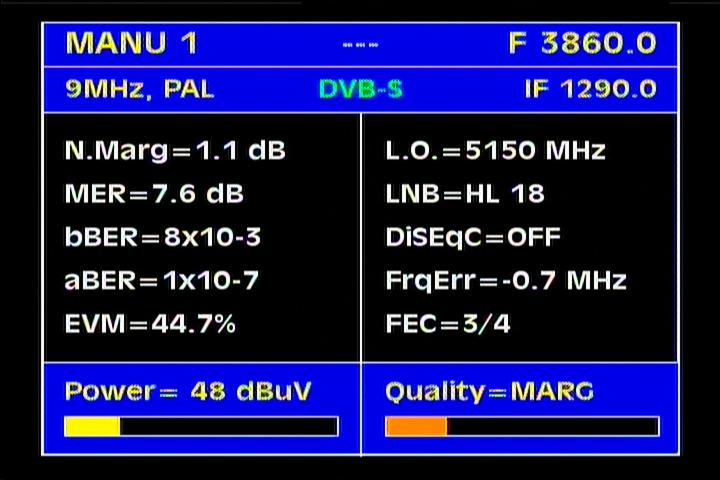

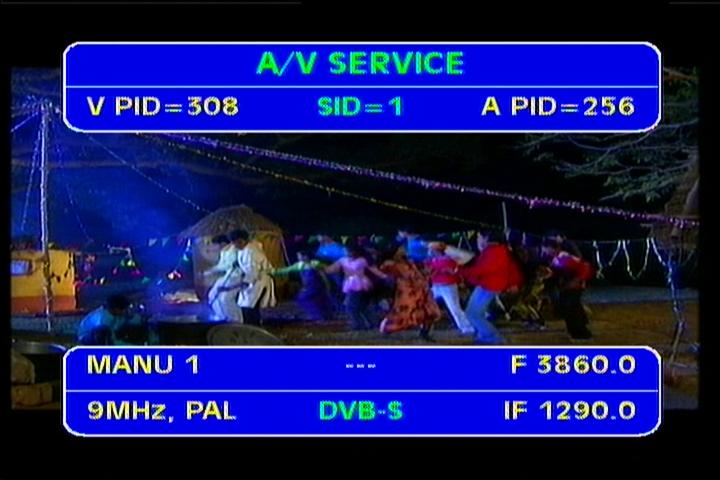

Insat 3A/4B at 93.5°E - C band footprint : 3 860 H feeds
IF data Q data NIT data

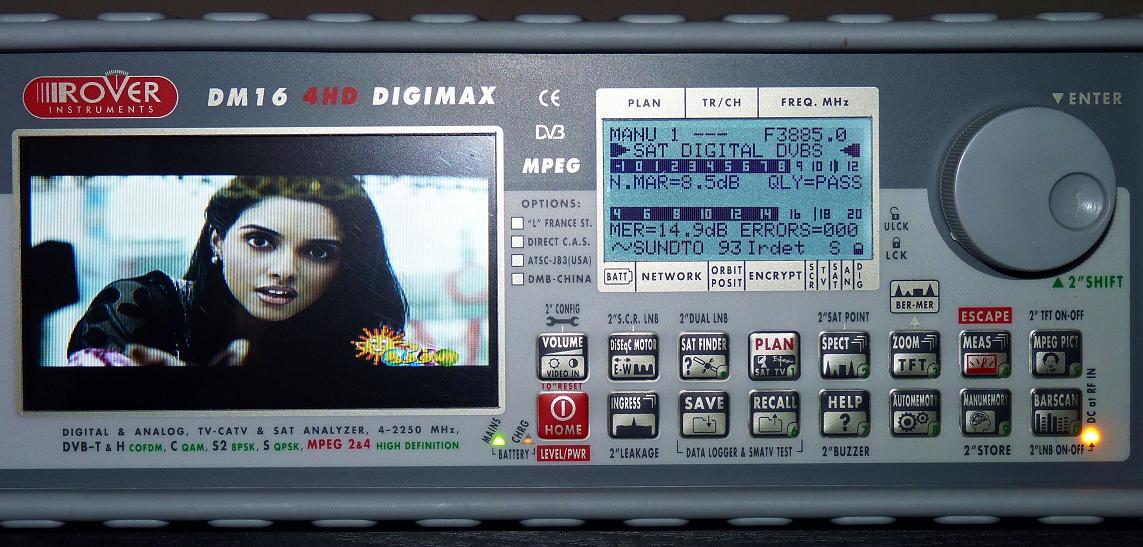

Insat 3A/4B at 93.5°E - C band footprint : 3 886 H SUN DTO Network India
IF data Q data NIT data
Insat 3A/4B at 93.5°E - C band footprint : 3 926 H DD Doordarshan
IF data Q data NIT data

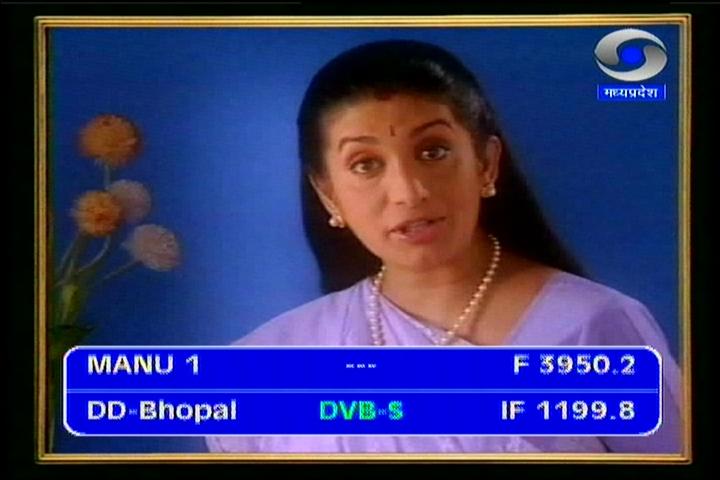

Insat 3A/4B at 93.5°E - C band footprint : 3 950 V DD Bhopal
IF data Q data NIT data

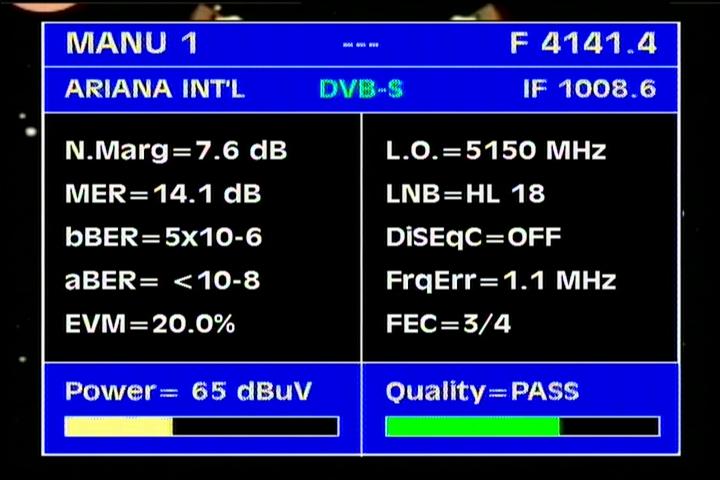

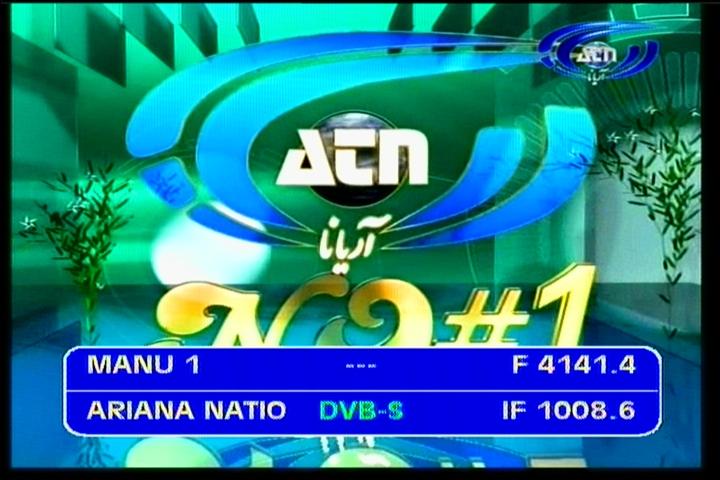

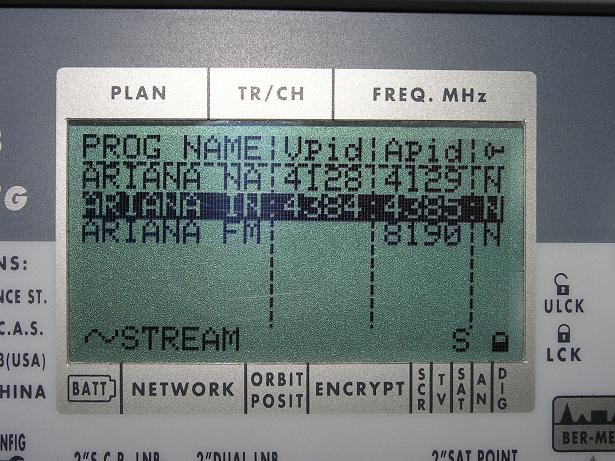

Insat 3A/4B at 93.5°E - C band footprint : 4 141 V Packet Ariana Int
IF data Q data NIT data
Insat 3A/4B at 93.5°E : TV List
-Frequency-
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---Video/Encryption--- |
|
3 725 -H- |
DD Doordarshan India | 27 500 | 3/4 | 4B ECC Asia | 180+ cm | DVB |
| DD NATIONAL | FTA | |||||
DD NEWS  |
FTA | |||||
| DD BHARTI |
FTA | |||||
| DD SPORTS |
FTA | |||||
| DD URDU | FTA | |||||
| DD BANGLA | FTA | |||||
| DD RAJYA SABHA /test card/ | FTA | |||||
| DD FEED | occasional | |||||
|
3 731 -V- tp 1 |
DD Bangla | 6 250 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds Kolkata | FTA | |||||
|
3 741 -V- tp 1 |
DD Punjabi | 6 250 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds Jalandhar | FTA/Biss/4:2:2 | |||||
|
3 751 -V- tp 1 |
DD Gujrati | 6 250 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds Ahmedabad | FTA/Biss/4:2:2 | |||||
|
3 751 -H- |
DD Dehradun /occasional/ | 4 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
|
3 760 -V- tp 1 |
DD Chandana | 6 250 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds Bangalore NE | FTA/Biss/4:2:2 | |||||
|
3 762 -H- |
DD Chhattisg /occasional/ | 4 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
|
3 768 -H- |
DD Ranchi /occasional/ | 4 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
|
3 773 -V- tp 2 |
DD Oriya | 6 250 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds DD Feed - BBSR | FTA/Biss/4:2:2 | |||||
|
3 774 -H- |
DD Jammu /occasional/ |
4 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
| feeds DD-Jammu | ||||||
|
3 782 -V- tp 2 |
DD Kashir Srin | 6 250 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds DD-News feed Srin | 4:2:2/Biss | |||||
|
3 791 -V- tp 2 |
DD Sahyadri |
8 600 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds News-Feed | FTA/Biss/4:2:2 | |||||
| feeds Mumbai-Feed | FTA/Biss/4:2:2 | |||||
|
3 802 -H- |
DD Hissar /occasional/ | 4 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
|
3 807 -H- |
DD Chandigarh /occasional/ | 4 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
|
3 813 -V- tp 3 |
DD Malayalam RL | 6 250 | 3/4 | 3A India | 220+ cm | DVB FTA |
| feeds News DDK Trivan | FTA/Biss/4:2:2 | |||||
|
3 820 -V- tp 3 |
DD Sapthagiri | 6 250 | 3/4 | 3A India | 220+ cm | DVB FTA |
| feeds News feed hyd | FTA/Biss/4:2:2 | |||||
|
3 823 -H- |
DD Port Blair /occasional/ | 4 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
|
3 832 -V- tp 3 |
DD Podhigai | 8 600 | 3/4 | 3A India | 220+ cm | DVB FTA |
| feeds Chennai | FTA/Biss/4:2:2 | |||||
|
3 833 -H- |
DD Bihar | 6 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
| feeds Triva | FTA/Biss/4:2:2 | |||||
|
3 842 -H- |
DD Guwahati |
6 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
| feeds DDGUW-NFEED | FTA/Biss/4:2:2 | |||||
|
3 851 -H- |
left |
6 250 | 3/4 | 4B ECC Asia | 180+ cm | DVB FTA |
| left | FTA/Biss/4:2:2 | |||||
|
3 860 -H- |
feeds 9 MHz PAL |
3 800 | 3/4 | 4B ECC Asia | 240+ cm | FTA |
|
3 885 -H- |
SUN Network India | 28 000 | 3/4 | 4B ECC Asia | 140+ cm | DVB |
| SUN TV | MPEG-4/Irdeto 2 | |||||
| KTV | MPEG-4/Irdeto 2 | |||||
| SUN News | MPEG-4/Irdeto 2 | |||||
| SUN Music | MPEG-4/Irdeto 2 | |||||
| Gemini TV | MPEG-2/Irdeto 2 | |||||
| Teja TV | MPEG-4/Irdeto 2 | |||||
| Navvulu TV | MPEG-4/Irdeto 2 | |||||
| Udaya TV | MPEG-4/Irdeto 2 | |||||
| Udaya Movies | MPEG-4/Irdeto 2 | |||||
| Adithya TV | MPEG-4/FTA | |||||
| Surya TV | MPEG-4/Irdeto 2 | |||||
| Chutti TV | MPEG-4/FTA | |||||
| Udaya TV 2 | MPEG-4/Irdeto 2 | |||||
| Gemini Music | MPEG-4/Irdeto 2 | |||||
| Kiran TV | MPEG-4/Irdeto 2 | |||||
| Kushi TV | MPEG-4/Irdeto 2 | |||||
| Chintu TV | MPEG-4/Irdeto 2 | |||||
| Ushe TV | MPEG-4/Irdeto 2 | |||||
| Gemini News | MPEG-4/Irdeto 2 | |||||
| Udaya Verthegal | MPEG-4/Irdeto 2 | |||||
|
3 889 -V- tp 5 |
feeds first_service .... |
2 010 | 3/4 | 3A India | 220+ cm | FTA/Biss/4:2:2 |
|
3 891 -V- tp 5 |
feeds second_service / MPEG-2 |
2 010 2 000 |
3/4 | 3A India | 220+ cm | MPEG-4/FTA |
|
3 903 -V- tp 5 |
feeds NEO |
6 111 | 3/4 | 3A India | 220+ cm | FTA/Biss/4:2:2 |
|
3 909 -V- tp 5 |
feeds Tandberg service |
3 125 | 3/4 | 3A India | 220+ cm | FTA/Biss/4:2:2 |
|
3 913 -V- tp 5 |
feeds Bangalore ... |
2 000 | 3/4 | 3A India | 220+ cm | FTA/Biss/4:2:2 |
|
3 915 -V- tp 5 |
feeds Delhi_4 |
1 600 | 3/4 | 3A India | 220+ cm | MPEG-4/FTA |
|
3 923 -V- tp 5 |
feeds Focus HY tv ... |
2 000 | 3/4 | 3A India | 220+ cm | FTA/Biss/4:2:2 |
|
3 925 -H- |
27 500 | 3/4 | 4B ECC Asia | 180 + cm | DVB | |
| DD National | FTA | |||||
| DD News | FTA | |||||
| DD Sports | FTA | |||||
| DD Bharti | FTA | |||||
| DD Bangla | FTA | |||||
| DD Podhigai |
FTA | |||||
| DD Saptagiri | FTA | |||||
| DD Portblair | FTA | |||||
| DD Malayalam | FTA | |||||
| DD Urdu |
FTA | |||||
|
3 932 -V- tp 6 |
DD Shimla |
6 250 | 3/4 | 3A Asia | 180+ cm | DVB FTA |
| feeds DD Shimla | FTA/Biss/4:2:2 | |||||
|
3 940 -V- tp 6 |
DD Jaipur |
6 250 | 3/4 | 3A Asia | 180+ cm | DVB FTA |
| feeds DD-N/Feed Jaipur | FTA/Biss/4:2:2 | |||||
|
3 950 -V- tp 6 |
DD Bhopal |
6 250 | 3/4 | 3A Asia | 180+ cm | DVB FTA |
| feeds DD News Bhopal | FTA/Biss/4:2:2 | |||||
|
3 951 -H- |
left |
4 440 | 3/4 | 4B ECC Asia | 140+cm | MPEG-4/FTA |
|
3 955 -H- |
left |
1 451 | 3/4 | 4B ECC Asia | 180+ cm | FTA/Biss/4:2:2 |
|
3 958 -V- tp 6 |
DD Lucknow |
6 250 | 3/4 | 3A India | 180+ cm | DVB FTA |
| feeds DD Lucknow | DVB | |||||
|
3 981 -H- |
left | 4 434 | 3/4 | 4B ECC Asia | 180+ cm | DVB-S |
|
4 005 -H- |
left | 25 423 | 7/8 | 4B ECC Asia | 220+ cm | DVB |
|
4 045 -H- |
left | 28 000 | 3/4 | 4B ECC Asia | 180+ cm | DVB |
|
4 068 -H- |
left |
1 481 | 7/8 | 4B ECC Asia | 180+ cm | MPEG-4/FTA |
|
4 053 -V- tp 8 |
feeds from Kokilaben Hospital ... |
2 200 | 3/4 | 3A India | 180+ cm | DVB/FTA |
|
4 074 -H- |
left |
2 100 | 3/4 | 4B ECC Asia | 180+ cm | DVB/FTA |
|
4 077 -H- |
left |
2 100 | 3/4 | 4B ECC Asia | 180+ cm | DVB/FTA |
|
4 085 -H- |
left |
2 200 | 3/4 | 4B ECC Asia | 180+ cm | DVB/FTA |
|
4 091 -H- |
left |
6 111 | 3/4 | 4B ECC Asia | 180+ cm | DVB/FTA |
|
4 092 -V- tp 10 |
DD SHG-Regional | 6 250 | 3/4 | 3A India | 220+ cm | DVB FTA |
| news feeds DDSHG | FTA/Biss/4:2:2 | |||||
|
4 102 -V- tp 10 |
DD Aizawl Regional | 6 250 | 3/4 | 3A India | 220+ cm | DVB FTA |
| feeds DD-AZL-Newsfeed | FTA/Biss/4:2:2 | |||||
|
4 109 -V- tp 10 |
DDK Agartala |
4 250 | 3/4 | 3A India | 220+ cm | DVB FTA |
|
4 121 -V- tp 11 |
DDK Kohima |
4 250 | 3/4 | 3A India | 220+ cm | DVB FTA |
|
4 129 -H- |
left |
3 800 | 3/4 | 4B ECC Asia | 180+ cm | FTA/Biss/4:2:2 |
|
4 133 -V- tp 11 |
RTA-Kabul Afghanistan | 4 000 | 3/4 | 3A India | 220+ cm | DVB FTA |
|
4 137 -V- tp 11 |
RTA Service | 2 000 | 3/4 | 3A India | 220+ cm | DVB FTA |
|
4 143 -V- tp 11 |
Ariana TV Network | 5 150 | 3/4 | 3A India | 220+ cm | DVB |
| Ariana National | FTA | |||||
| Ariana International | FTA |
Insat 3A/4B at 93.5°E : relative quality
Insat 3A/4B at 93.5°E : Video presentations
Go to Video Section:
Insat 3A/4B at 93.5°E : Update prepared
CZECH & SLOVAK DX SATELLITE CLUB
international professional portal
think-tank
Roman Dávid - author & founder
mail : roman.david@dxsatcs.com

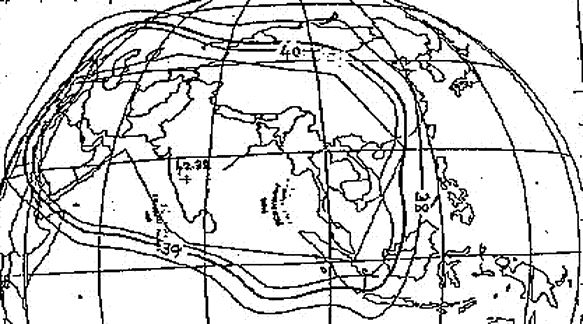

Insat 3A/4B at 93.5°E footprint
